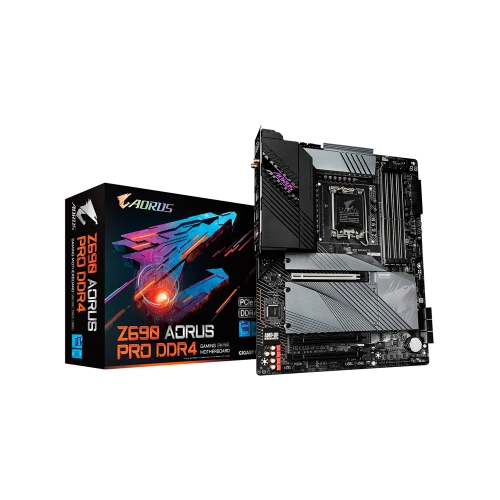

| Modelo | Z690 AORUS PRO DDR4 |
| Procesador | Admite 14va, 13va y 12.a Gen de Intel Core/Pentium Gold/Celeron |
| Socket | LGA 1700 |
| Chipset | Intel Z690 |
| Memoria RAM | 4 x DIMM, Max. 128GB DDR4, 5600(O.C.)/ 5400(O.C.)/ 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz. |
| Puertos de expansión | - 1 x Ranura PCIe x16 soporta PCIe 5.0 (modo x16)
- 2 x Ranura PCIe x16 soporta PCIe 3.0 (modo x4)
- 6 x Conectores SATA 6Gb/s
- 1 x M.2 PCIe 4.0 x4/x2 tipo 2260/2280/22110
- 1 x M.2 PCIe 4.0 x4/x2 y SATA tipo 2260/2280/22110
- 2 x M.2 PCIe 4.0 x4/x2 tipo 2260/2280/22110
|
| Conexiones | - 1 x USB 3.2 Gen 2x2 Tipo-C
- 4 x USB 3.2 Gen 2 Tipo-A
- 4 x USB 3.2 Gen 1
- 4 x USB 2.0/1.1
- 1 x DisplayPort
- 1 x RJ-45
- 1 x Salida S/PDIF
- 2 x Audio jacks
- 2 x SMA (2T2R)
|
| WiFi / Bluetooth | WIFI (a, b, g, n, ac, ax, 2.4/5 GHz), BLUETOOTH 5.2 |
| LAN | Intel 2.5GbE(2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | Realtek ALC4080 CODEC 7.1 |
| CPU Ideal | I9-14900KF |
| Factor forma | ATX 30.5 cm x 24.4 cm |
| Información extra | Link Externo |
